Precision Test Equipment

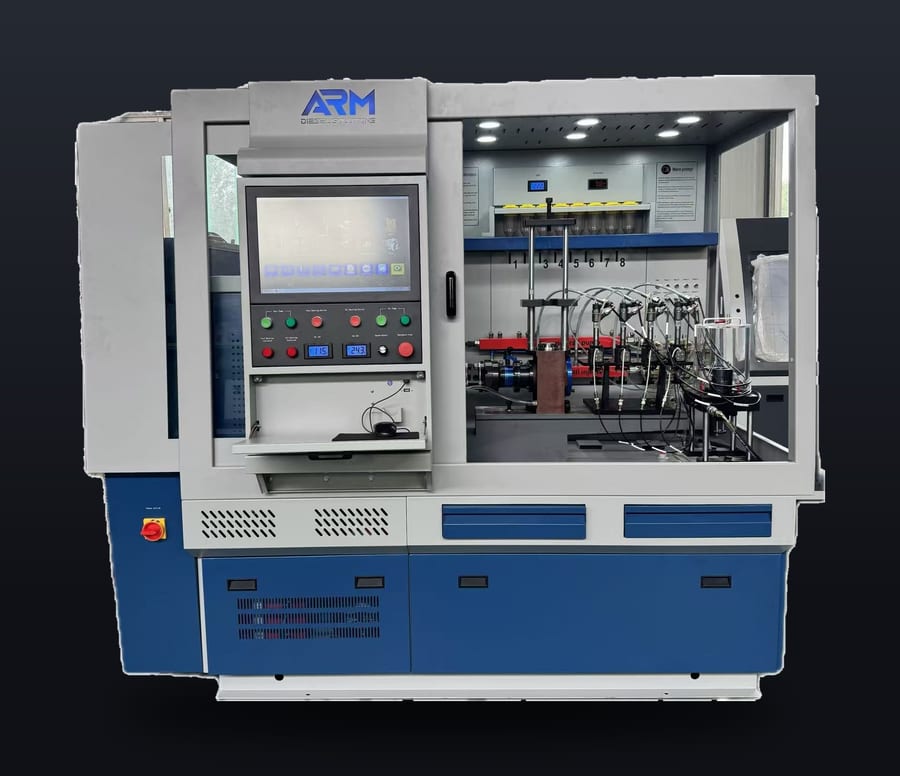

ARM Multifunction Diesel Test Bench
One production-grade bench for the whole diesel fuel system — common rail & piezo injectors, high-pressure pumps, HEUI/HEUP and EUI/EUP — with three independent workstations running at once.
4
CR injectors tested at once
6
Drive motors
3
Independent workstations
16
EUI/EUP cambox adapters
Injector Testing
- Common rail & piezo injectors — 2-pin & 4-pin (Cummins XPI, Bosch 4.2, Denso 4/6-pin)
- CR injector parts: AHE & opening pressure
- Test 4 common rail injectors simultaneously
- Delphi F2E 3+3 tested separately
Injector Coding
BoschCumminsDensoDelphi
Pump Testing
- Common rail pumps CP1–CP7, HP0–HP7 — double ZME
- CR pump parts: AME & DRV
- 320D pump
HEUI · HEUP · EUI/EUP
- HEUI & HEUP — C7, C9, C-9, 3126
- Fixing stand for HEUI 3412 / 3408, Ford G2.9 / G2.8, Navistar
- EUI/EUP with new Cambox — 16 adapters, automatic oil filling
- 320D injector
Built for Production
- 3 workstations (CR injector · HEUI · EUI/EUP) driven by 6 motors
- 3 flowmeters + forced cooling system
- 2 rails with DRV & sensors
- Bosch CP3 pump + Germany-made high-pressure pipe
